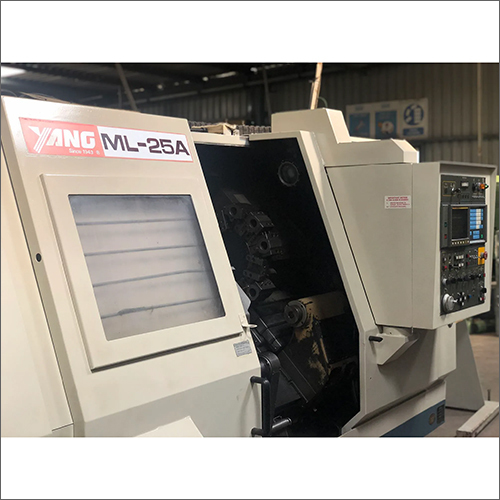

Yang Ml 25A CNC Lathe Machine

Yang Ml 25A CNC Lathe Machine

100000.00-100000000.00 INR/Piece

Product Details:

X

Price And Quantity

  • 1 Piece
  • 100000.00-100000000.00 INR/Piece

Product Specifications

  • Metal

Trade Information

  • 5 Piece Per Month
  • 1 Days

Product Description

WORKING CAPACITY
  • Max Turning Diameter: 280 mm
  • Max Turning Length: 520 mm
  • Swing: 550 mm
  • Distance Between Centers: 600 mm
  • Chuck Equipped: 200 mm
  • Max Chuck Capacity: 250 mm
  • Guideways: LM
SPINDLE
  • Max Rotation Speed: 4500 RPM
  • Spindle Nose: A2-6
  • Spindle Bore: 77 mm
  • Spindle Motor Power: 15 / 18.5 kW
TURRET
  • Turret: 12 Stations
  • Tool Shank: 25 x 25 mm
CNC
  • Control: Fanuc OT-C
TAILSTOCK
  • Tailstock: Yes
Machine Dimensions
  • Approx. Weight: 5 T
  • Floor Space: 4 x 2 x 2.3 Meters
