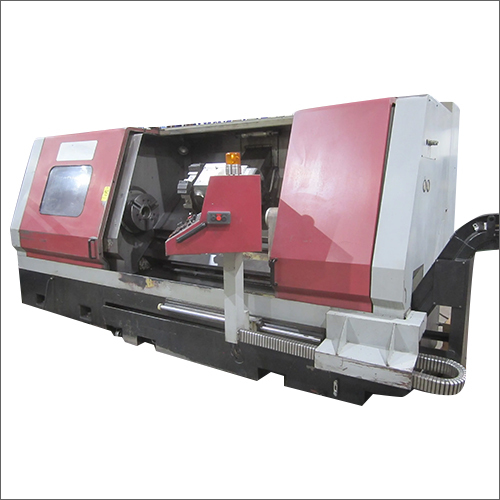

Johnford TC75 CNC Lathe Machine

Johnford TC75 CNC Lathe Machine

100000.00-100000000.00 INR/Piece

Product Details:

X

Price And Quantity

  • 100000.00-100000000.00 INR/Piece
  • 1 Piece

Product Specifications

  • Metal

Trade Information

  • 5 Piece Per Month
  • 1 Days

Product Description

WORKING CAPACITY
  • Max Turning Diameter: 540 mm
  • Max Turning Length: 1550 mm
  • Swing: 690 mm
  • Distance Between Centers: 1700 mm
  • Chuck Equipped: 375 mm
  • Travels (X / Z): 350 / 1551 mm
  • Guideways: Box
SPINDLE
  • Max Rotation Speed: 1700 RPM
  • Spindle Nose: A2-11
  • Spindle Bore: 123 mm
  • Spindle Motor Power: 35 HP

TURRET
  • Turret: 12 Stations
  • Four Speed Gearbox
  • Slant Bed Box Ways
CNC
  • Control: Fanuc OT
TAILSTOCK
  • Tailstock Quill Taper: 5 MT
Machine Dimensions
  • Weight: 14 T
  • L x W x H: 214" x 96" x 104"
