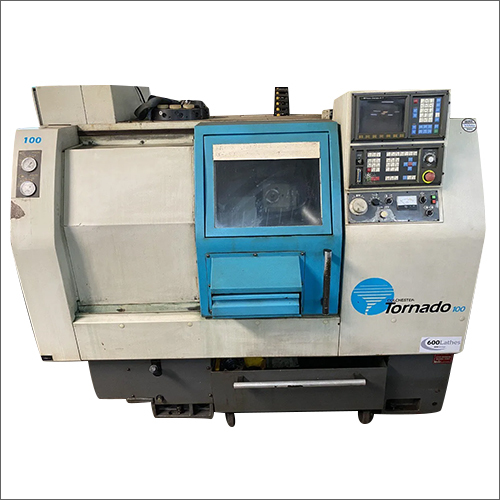

Colchester Tornado 100 CNC Lathe Machine

Colchester Tornado 100 CNC Lathe Machine

100000.00-100000000.00 INR/Piece

Product Details:

X

Price And Quantity

  • 1 Piece
  • 100000.00-100000000.00 INR/Piece

Product Specifications

  • Metal

Trade Information

  • 5 Piece Per Month
  • 1 Days

Product Description

Colchester Tornado 100 CNC Lathe Machine is an industry-specific machine that is popularly known among our customers owing to its ruggedness and resilience. This machine has got high precision and sturdy construction. It is typically used in industries such as mechanical, metalworking, among others. The machine has got a user-friendly design and unmatched ergonomics, therefore, it is preferred to other similar products available in the marketplace. Colchester Tornado 100 CNC Lathe Machine can be purchased from us at a sensible price.

WORKING CAPACITY

  • Max Turning Diameter: 186 mm
  • Max Turning Length: 350 mm
  • Swing: 420 mm
  • Distance Between Centers: 380 mm
  • Chuck Equipped: 165 mm
  • Travels (X / Z): 180 / 350 mm
  • Rapid Travels (X/Z): 10/15 m/min

SPINDLE

  • Max Rotation Speed: 4000 RPM
  • Spindle Nose: A2-5
  • Spindle Bore: 61 mm
  • Spindle Motor Power: 5.5 / 7.5 kW

TURRET

  • Turret: 12 Stations (VDI 30

CNC

  • Control: Fanuc OT

TAILSTOCK

  • Tailstock: Yes

Machine Dimensions

  • Weight: 2.5T
  • Floor Space: 2.98 Sq. Meter
